High-pressure high-power air heater
High-voltage and high-power air heater working principle: As shown in the schematic diagram, when high-voltage electricity is connected to the A-phase, B-phase and C-phase heating element groups, cold air enters through the inlet under the action of the fan. The cold air is heated to the set temperature when passing through these heating elements, and the heated air is emitted from the outlet, thereby completing the air heating process. Advantages and functions: The use of high-voltage electricity saves transformer costs; increases the power of a single unit; reduces the number of low-voltage units with equivalent power; eliminates the need for additional investment in transformers and related electrical cabinets; reduces investment; lowers the power consumption of the equipment and improves the safety of the equipment. Product application: High-voltage high-power air heaters are widely used. This air heater, commonly used for anti-freezing in mines and drying parts, has been widely used in aviation, weapons, chemical industry and many research and production laboratories in universities. High-voltage, high-power air heaters can heat any gas and produce dry, non-conductive, non-flammable, non-explosive, non-corrosive, pollution-free, safe and reliable air. The heated space experiences a rapid (controllable) temperature rise. Product Selection Table
Category:
Waste heat recovery unit from the air
Keywords:
High pressure electrode boiler, air waste heat recovery machine
Benefits and features
Using high-voltage power connection saves on transformer costs.
It can increase the power of a single device.
Reduce the number of low-voltage devices with equivalent power
No additional investment in transformers and associated electrical cabinets is required.
Reduce investment
It can reduce the current value of the equipment and improve the safety of the equipment.
Product use
High-voltage, high-power air heaters have a wide range of applications. They are commonly used for antifreeze heating in mines and drying parts, and have been widely used in many scientific research and production laboratories in aviation, weapons, chemical industry and universities.
High-voltage, high-power air heaters can heat any gas and produce dry, non-conductive, non-flammable, non-explosive, non-corrosive, pollution-free, safe and reliable hot air that heats the room quickly (controllable). Electric hot air blower | Electric hot air heater
High-pressure high-power air heater
HIGH VOLTAGE AND HIGH POWER AIR HEATER
Working principle

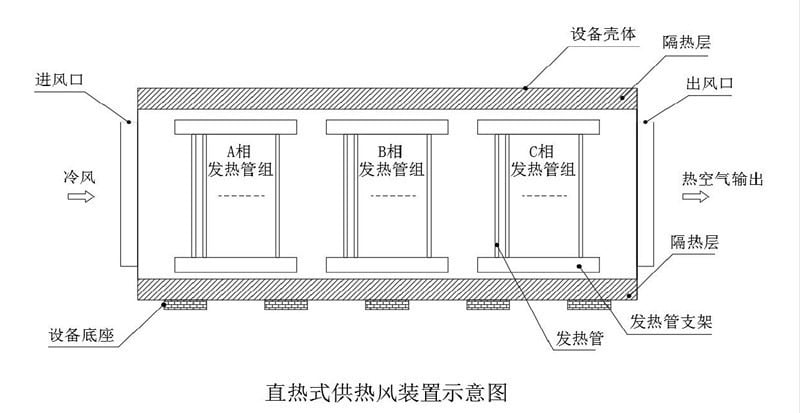

As shown in the schematic diagram, when high-voltage electricity is connected to the heat pipe groups of phase A, phase B and phase C, cold air enters through the air inlet under the action of the fan. After passing through the heat pipe groups of phase A, phase B and phase C, the cold air is heated to the set temperature. The heated air is then discharged from the air outlet, thereby completing the air heating process.
