Waste heat recovery unit from the air

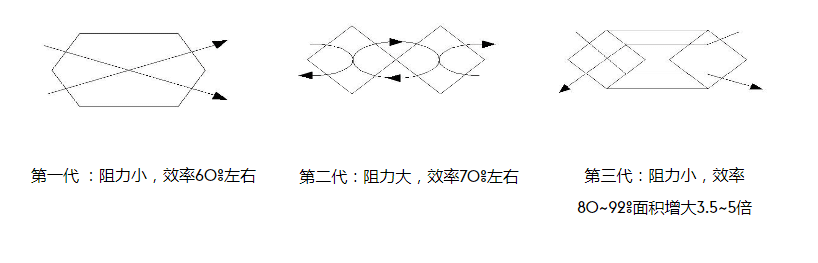

Third generation: Low resistance, efficiency 80-92%, 3.5-5 times larger area. Waste heat recovery unit. The waste heat recovery unit is a heat exchanger that allows air to exchange energy through specially treated heat-conducting metal plates. It completely separates fresh air and exhaust air, avoiding solvent transfer. The two air flows enter the heat exchanger cross-flow, and the energy of fresh air and exhaust air is exchanged through the metal plates, allowing heat to be transferred from the warmer side to the colder side, thereby recovering the energy in the exhaust air. Equipment advantages and features: ◆ Modular structure – Available in all cross-sections and plate sizes.
Category:
Waste heat recovery unit from the air
Keywords:
High pressure electrode boiler, air waste heat recovery machine
Benefits and features
- Modular structure – Available in all combinations of cross-sectional sizes and plate thicknesses.
- Compact structure – Small size, suitable for air waste heat recovery.
- Dustproof – All inlets have washable filters to prevent dust from entering the heat exchanger.
- High efficiency – The heat exchanger’s measured efficiency for recovering excess heat is up to 86.5%.
- No heat exchange medium – Since the metal plate heat exchanger has no heat exchange medium, it will not be damaged by corrosive air or liquids used for heat exchange.
Waste heat recovery equipment with heat pump

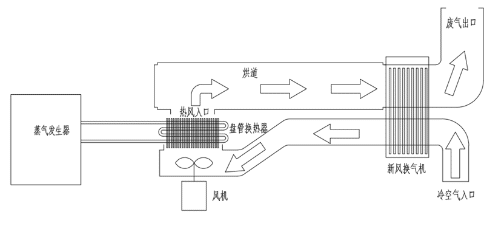

The heat pump recovers all the heat from the exhaust air, increasing the efficiency from 85% to 100%. After adding a heat pump system, the waste heat recovery unit recovers the remaining heat from the exhaust air after heat exchange, absorbs heat through the evaporator, and uses a compressor to transfer the heat to the condenser. The preheated fresh air is reheated as it passes through the condenser, turning into high-temperature hot air before being delivered to the point of use.
Waste heat recovery unit
Waste heat recovery equipment
Working principle
The waste heat recovery unit is a heat exchanger that allows air to exchange energy with each other through specially treated heat-conducting metal plates. It completely separates fresh air and exhaust air, avoiding the transfer of solvents. The two air flows enter the heat exchanger in cross-flow, and the energy of the fresh air and exhaust air is exchanged through the metal plates, allowing heat to be transferred from the warmer side to the colder side, thereby recovering energy from the exhaust air.
Waste heat recovery equipment with heat pump
The heat pump recovers all the heat from the exhaust air, increasing the efficiency from 85% to 100%. After adding a heat pump system, the waste heat recovery unit recovers the remaining heat from the exhaust air after heat exchange, absorbs heat through the evaporator, and uses a compressor to transfer the heat to the condenser. The preheated fresh air is reheated as it passes through the condenser, turning into high-temperature hot air before being delivered to the point of use.
